A. Introduced 2019

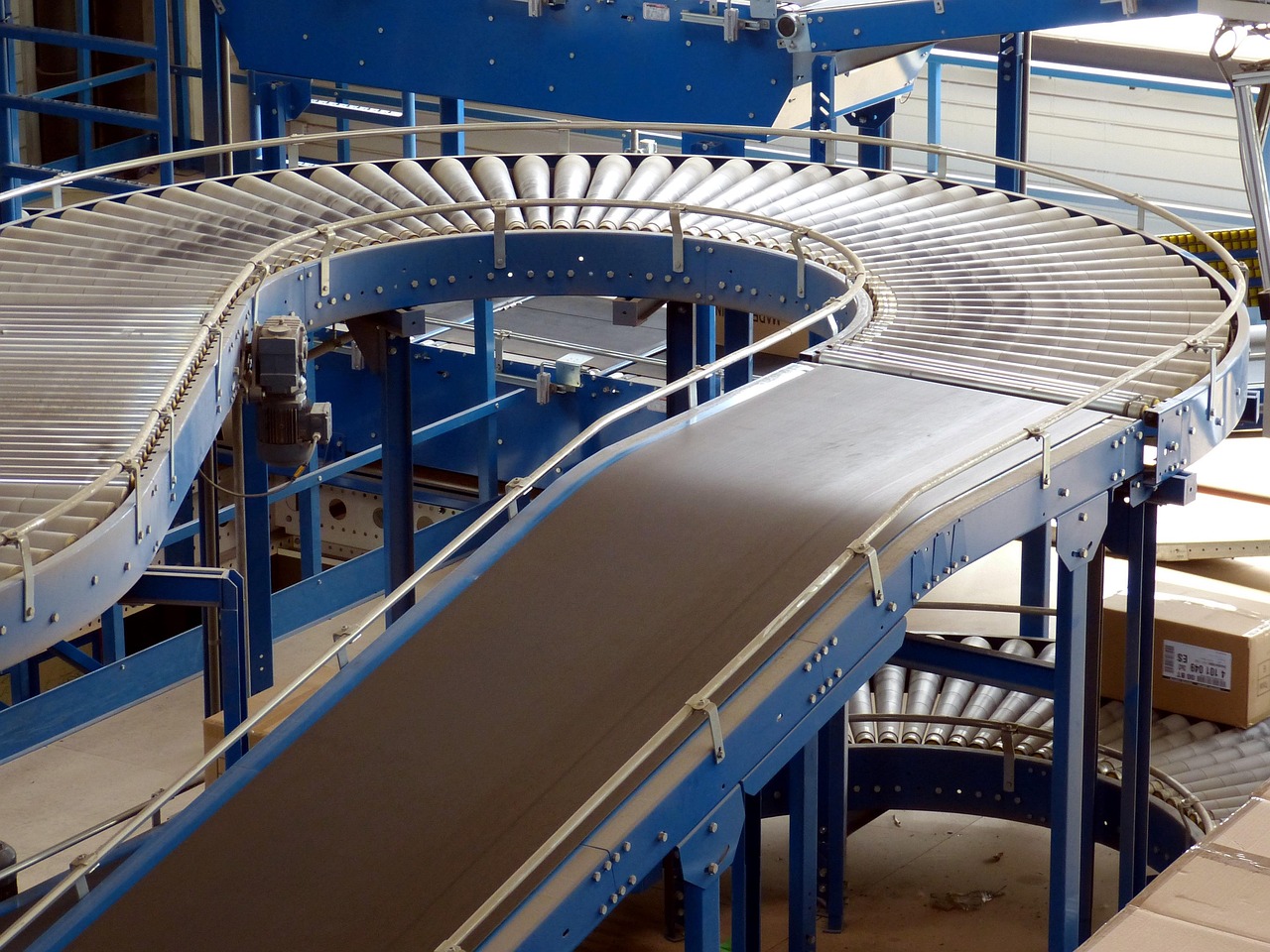

Rollers &
Conveyancing Systems
Pivotal in the transportation of ore throughout processing and value addition.
Shepco introduced the Rollers & Conveyancing department to increase leverage in materials handling processes, over and above our loco, headgear and skip handling systems. Conveyancing systems play a pivotal role in the transportation of ore throughout the various stages of processing and value addition — within the mining, industrial, construction, manufacturing and associated industries.
Rollers & Frames
Idler Frames & Brackets
Troughing Rollers (Steel, HDPE, Rubberized & Impact)
Return Idler Rollers (Rubberized & Disc)
Policeman Idler Rollers
Pulleys & Belting
Conveyor Pulleys, Custom-Manufactured
Pulley Repair & Lagging (Onsite & Ex-Works)
Conveyor Belts, Splicing & Lagging
Belt Fasteners, Punches & Wrench
Carpenters Brace & Installation Tools
Drive Components
Plummer Blocks & Bearings
Gearboxes and Motors
Roller End Types
Slotted Type (SABS)
Flat Shaft Type
Jeffrey (Hex Ends)
Robins (Rubber Collar Ends)
Manufactured to SABS and CEMA series international standards, while also accommodating legacy design series still running in the country (Robins, Jeffrey, etc.).
Steel RollersStandard size 127mm diameter. Also available: 152mm (mostly Platinum Mines), 114mm, 100mm, 89mm, 76mm and 60mm.
Shaft SizesStandard sizes 25mm and 20mm. 30mm shafts mostly used on 127mm and 152mm diameter rollers.
Impact RollersRubber impact rollers absorb shock at loading points to protect belts. Standard 152mm & 127mm; smaller diameters (114mm, 100mm, 89mm) available for modern plants.
Rubber Disc (Spool)Used on the return belt as flat or V-return configuration, providing belt-cleaning properties.
HDPE RollersHigh-density polyethylene. Not yet common, but some mines are embracing them — mostly found in 125mm diameter.
Idler FramesSupplied for belt widths 400mm to 2400mm. Designs: 1/2/3/5-roll, offset or inline, top-mounted or underslung, self-aligning, H-Frame, Stringer, and V-Return.
